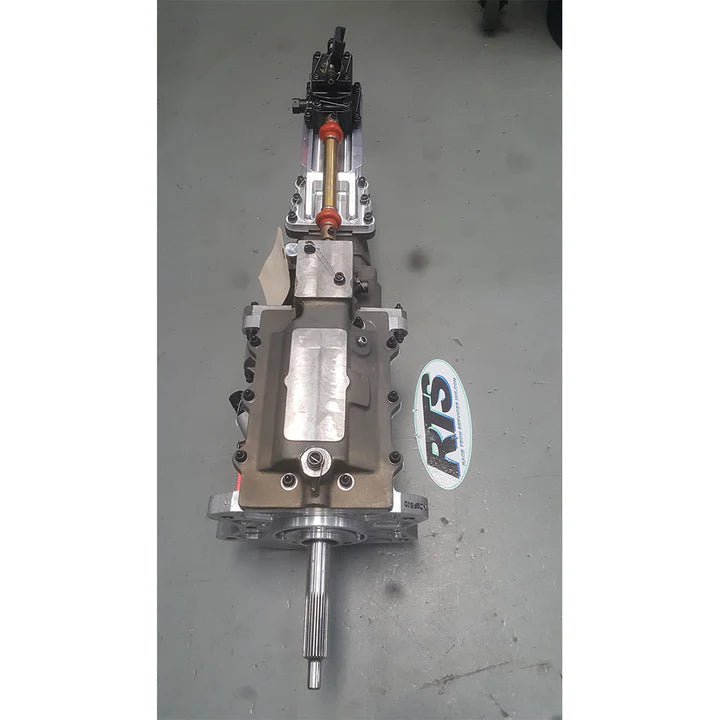

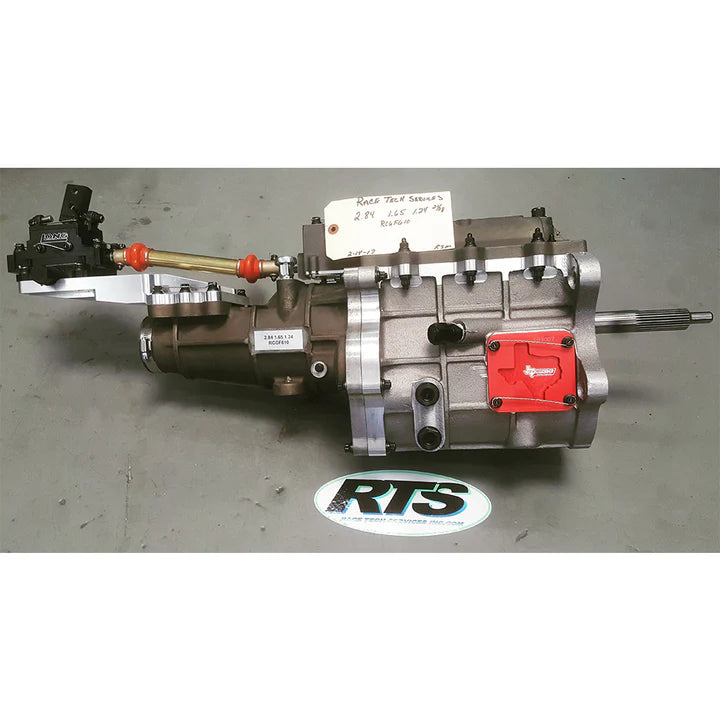

RTS GSR Gforce 4 speed Dogbox Transmission

RTS GSR Gforce 4 speed Dogbox Transmission

Regular price $10,200.00 USD
Regular price Sale price $10,200.00 USD
Sale Sold out
Hardened Slip Yoke
Custom Input Shafts

"NEW"

Delivered anywhere in the USA FREE! 100% RACE READY! *All hand built units are generally 4 week lead time prior to shipping.

*International Clients email us for current shipping Quote!


RTS GSR center shift transmissions have UPGRADED NEW ALUMINUM CASES on every transmission which a much stronger and last much longer. This is for NEW  products!!!

ALL RTS GSR dogbox transmissions include NEW UPGRADED internals such as HD 3rd-4th dog-ring face plates, HD 3/4 Slider, and STEEL 3/4 fork! No one else offers ALL these upgrades without an up-charge…

ALL RTS GSR racing transmissions have a double flat roller bearing in the tail housing to eliminate driveshaft slip yoke parasitic drag loss all the while handling much higher torque loads than the old school Cleveite bushings. The double flat roller bearing requires a "Hardened Slip Yoke", this yoke is required for ANY dog-box style transmission!

RTS dog-boxes have an output shaft that is *32 spline to handle maximum power transfer, ALL racing Dog-boxes require a "Hardened slip yoke" for the front of your drive-shaft you are running." You can also purchase this "Hardened Slip Yoke" direct from us, the additional cost is $280.00

RTS GSR Gforce transmissions have over 250 ratio stacks options! RTS builds your dogbox with any Stack YOU desire!

RTS GSR Standard Input Shaft:

  • 26 spline x 1.125" diameter x 6.660" length
  • 29 spline x 1.250" diameter x 6.660" length

RTS GSR CUSTOM Input Shafts:

(These are additional $500)

  • 10 spline x 1.125 diameter 6.660" length
  • 10 spline x 1.375 diameter x 6.660" length DRAG RACING
    14 spline 2JZ x 1.125" diameter x length (LONG input *Used with Toyota V160 style Bell Housing*)
  • 14 spline 2JZ x 1.125" diameter x 6.660" length NEW! (To be used with RTS 2JZ bell Hsg Pkg / No adapter plates required)
  • 24 spline RB/SR
  • 24 spline VG35 series
  • 26 spline RX7 series

Special Bell Housing CnC Adapters PLATES:

(Designed for listed engines to GSR Dogbox mounting bolt pattern))

  • 2JZ (Used with Toyota V160 style Bell Housing using LONG input shaft)
  • RB / SR series
  • VG35
  • RX7 (.750" and 1.000" thick versions)

GSR Shifter Setback Options:

(This is measured from face of transmission back to center of shifter assembly)

  • RTS offers you ANY shifter setback you desire!
  • 21" – 24" – 26" inches

RTS has raced and serviced these racing transmission for many years. Every race box is gone thru and serviced for maximum reliability and performance. The internals have all been updated to the best quality materials money can buy...

NO ONE ELSE CAN TOUCH THIS PKG

*(Delivered to YOUR Door Step RACE READY w/ FREE shifter handle and shift knob!)

Delivered anywhere in the USA FREE! 100% RACE READY! *All hand built units are generally 4 week lead time prior to shipping.

*International Clients email us for current shipping Quote!


IMPORTANT NOTICE:

In the COMMENTS box before you pay for item, PLEASE MAKE SURE YOU LIST RATIO STACK YOU WANT and SHIFTER SETBACK YOU DESIRE!!!!!! This will SAVE ALLOT of time processing order…

Thanks for Visiting Our Page, We GREATLY appreciate your Business and Trust regarding the past 500+ dogboxes sold.
